# 1.代理示例

{% hint style="success" %}
对应的[官方页面地址](https://github.com/dani-garcia/vaultwarden/wiki/Proxy-examples)
{% endhint %}

以下是用户收集的不同[反向代理](https://zh.wikipedia.org/wiki/%E5%8F%8D%E5%90%91%E4%BB%A3%E7%90%86)配置示例列表。我们建议使用反向代理终止 TLS/SSL 连接（最好是 443 端口，即 HTTPS 的标准端口），而不是使用 Vaultwarden 内置的 HTTPS 功能。有关更多信息，请参阅[启用 HTTPS](/reverse-proxy/https/enabling-https.md)。

在本文档中，我们假设您在与反向代理相同的主机上运行 Vaultwarden。如果您将 Vaultwarden 作为一个容器运行，假设您已经向主机发布了 `-p 127.0.0.1:8000:80`，因为容器内的 Vaultwarden 已经被配置为监听所有 IPv4 接口（`ROCKET_ADDRESS=0.0.0.0`）上的 `80` 端口（通过 `ROCKET_PORT`）。

示例还假定您没有加密反向代理和 Vaultwarden 之间的连接，即没有配置 `ROCKET_TLS`，因此反向代理可以直接通过 `http://127.0.0.1:8000` 连接到 Vaultwarden。

如果您使用 [Docker Compose](https://docs.docker.com/compose/) 将容器化的服务（例如，Vaultwarden 与反向代理）链接在一起，您必须调整示例代码以考虑到这一点（例如，将 `127.0.0.1:8000` 改为 `service_name:80`，而 `service_name` 通常是 `vaultwarden`）。请参阅[使用 Docker Compose](/container-image-usage/using-docker-compose.md) 了解这方面的示例。

{% hint style="success" %}
可以使用 Mozilla 的 [SSL Configuration Generator](https://ssl-config.mozilla.org/) 来生成用于网页服务器的安全 TLS 协议和密码配置。已知所有受支持的浏览器和移动应用程序都可以使用这种「现代化的」配置。
{% endhint %}

***

<details>

<summary>Caddy 2.x</summary>

在大多数情况下 Caddy 2 会自动启用 HTTPS，参考[此文档](https://caddyserver.com/docs/automatic-https#activation)。

在 Caddyfile 语法中，`{$VAR}` 表示环境变量 `VAR` 的值。如果您喜欢，也可以直接指定一个值，而不是用一个环境变量的值来代替。

```nginx
# 取消注释以下语句以及取消注释 import admin_redir 语句，以仅允许从本地网络访问管理界面
# {
#        servers {
#                trusted_proxies static private_ranges
#                client_ip_headers X-Forwarded-For X-Real-IP
#                # client_ip_headers CF-Connecting-IP X-Forwarded-For X-Real-IP
#                # If using Cloudflare proxy, insert CF-Connecting-IP as first priority
#                # since Cloudflare doesn't prevent X-Forwarded-For spoofing.
#        }
# }
# (admin_redir) {
#        @admin {
#                path /admin*
#                not remote_ip private_ranges
#        }
#        redir @admin /
# }

{$DOMAIN} {
  log {
    level INFO
    output file {$LOG_FILE} {
      roll_size 10MB
      roll_keep 10
    }
  }

  # 如果您想通过 ACME（Let's Encrypt 或 ZeroSSL）获取证书，请取消注释
  # tls {$EMAIL}

  # 或者如果您提供自己的证书，请取消注释
  # 如果您在 Cloudflare 后面运行，您也会使用此选项
  # tls {$SSL_CERT_PATH} {$SSL_KEY_PATH}

  # 此设置可能会在某些浏览器上出现兼容性问题（例如，在 Firefox 上下载附件）
  # 如果遇到问题，请尝试禁用此功能
  encode zstd gzip

  # 取消注释以提高安全性（警告：只有在您了解其影响的情况下才能使用！）
  # 如果您想使用 FIDO2 WebAuthn，请将 X-Frame-Options 设置为 "SAMEORIGIN"，否则浏览器将阻止这些请求
  # header / {
  #	# 启用 HTTP Strict Transport Security (HSTS)
  #	Strict-Transport-Security "max-age=31536000;"
  #	# 禁用 cross-site filter (XSS)
  #	X-XSS-Protection "0"
  #	# 禁止在框架内呈现网站 (clickjacking protection)
  #	X-Frame-Options "DENY"
  #	# 阻止搜索引擎建立索引（可选）
  #	X-Robots-Tag "noindex, nofollow"
  #	# 禁止嗅探 X-Content-Type-Options
  #	X-Content-Type-Options "nosniff"
  #	# 服务器名称移除
  #	-Server
  #	# 移除 X-Powered-By，虽然这不应该是一个问题，但最好移除
  #	-X-Powered-By
  #	# 移除 Last-Modified，因为 etag 相同并且同样有效
  #	-Last-Modified
  # }

  # 取消注释以仅允许从本地网络访问管理界面
  # import admin_redir

  # 取消注释以只允许从指定的转发 IP（例如 Cloudflare 代理）访问管理界面
  # @not_allowed_admin {
  #     path /admin*
  #     Trusted IPs one and two
  #     not client_ip xx.xx.xx.xx/32 xx.xx.xx.xx/32
  #     # remote_ip's forwarded mode is deprecated; client_ip matcher with global options client_ip_headers and trusted_proxies
  # }

  # respond @not_allowed_admin "401 - {http.request.header.Cf-Connecting-Ip} is not an allowed IP." 401

  # 将所有代理到 Rocket
  # 如果位于子路径中，则 reverse_proxy 行将如下所示：
  # reverse_proxy /vault/* 127.0.0.1:8000
  reverse_proxy 127.0.0.1:8000 {
       # 把真实的远程 IP 发送给 Rocket，以便 Vaultwarden 将其放入日志中，
       # 这样 fail2ban 就可以阻止正确的 IP 了
       header_up X-Real-IP {remote_host}
       # 如果您使用 Cloudflare 代理，请将 remote_host 替换为 http.request.header.Cf-Connecting-Ip
       # 如果使用全局选项 'client_ip_headers CF-Connecting-IP' 则不需要
       # 请参阅 https://developers.cloudflare.com/support/troubleshooting/restoring-visitor-ips/restoring-original-visitor-ips/
       # 以及 https://caddy.community/t/forward-auth-copy-headers-value-not-replaced/16998/4
  }
}
```

</details>

<details>

<summary><del>lighttpd (by forkbomb9)</del></summary>

```nginx
erver.modules += ( "mod_proxy" )

$HTTP["host"] == "vault.example.net" {
    $HTTP["url"] == "/notifications/hub" {
       # WebSocket proxy
       proxy.server  = ( "" => ("vaultwarden" => ( "host" => "<SERVER>", "port" => 3012 )))
       proxy.forwarded = ( "for" => 1 )
       proxy.header = (
           "https-remap" => "enable",
           "upgrade" => "enable",
           "connect" => "enable"
       )
    } else {
       proxy.server  = ( "" => ("vaultwarden" => ( "host" => "<SERVER>", "port" => 4567 )))
       proxy.forwarded = ( "for" => 1 )
       proxy.header = ( "https-remap" => "enable" )
    }
}
```

在 Vaultwarden 环境中，您必须将 `IP_HEADER` 设置为 `X-Forwarded-For` 而不是 `X-Real-IP`。

</details>

<details>

<summary>lighttpd with sub-path (by FlakyPi)</summary>

在这个示例中，通过 <https://shared.example.tld/vault/> 访问 Vaultwarden。如果您想使用其他子路径，如 `vaultwarden` 或 `secret-vault`，则应更修改下面示例中的 `vault` 以匹配。

您还需要在 `DOMAIN` 环境变量的值中包含子路径（例如 `DOMAIN: "https://shared.example.tld/vault"`），才能使代理正常工作。

```nginx
server.modules += (
"mod_openssl",
"mod_redirect"
)

$SERVER["socket"] == ":443" {
    ssl.engine   = "enable"
    ssl.pemfile  = "/etc/letsencrypt/live/shared.example.tld/fullchain.pem"
    ssl.privkey  = "/etc/letsencrypt/live/shared.example.tld/privkey.pem"
}

# Redirect HTTP requests (port 80) to HTTPS (port 443)
$SERVER["socket"] == ":80" {
    $HTTP["host"] =~ "shared.example.tld" {
         url.redirect = ( "^/(.*)" => "https://shared.example.tld/$1" )
         server.name = "shared.example.tld"
    }
}

server.modules += ( "mod_proxy" )

$HTTP["host"] == "shared.example.tld" {
    $HTTP["url"] =~ "/vault" {
       proxy.server  = ( "" => ("vaultwarden" => ( "host" => "127.0.0.1", "port" => 8000 )))
       proxy.forwarded = ( "for" => 1 )
       proxy.header = (
           "https-remap" => "enable",
           "upgrade" => "enable",
           "connect" => "enable"
       )
    }
}
```

您必须将 Vaultwarden 环境配置中的 `IP_HEADER` 设置为 `X-Forwarded-For` 而不是默认的 `X-Real-IP`。

</details>

<details>

<summary>Nginx (by <a href="https://github.com/BlackDex">@BlackDex</a>)</summary>

```nginx
# 'upstream' 指令确保您有一个 http/1.1 连接
# 这里启用了 keepalive 选项以拥有更好的性能
#
# 此处定义服务器的 IP 和端口。
upstream vaultwarden-default {
  zone vaultwarden-default 64k;
  server 127.0.0.1:8000;
  keepalive 2;
}

# 要支持 websocket 连接的话才需要
# 参阅：https://nginx.org/en/docs/http/websocket.html
# 我们不发送上述链接中所说的 "close"，而是发送一个空值，
# 否则所有的 keepalive 连接都将无法工作。
map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      "";
}

# 将 HTTP 重定向到 HTTPS
server {
    listen 80;
    listen [::]:80;
    server_name vaultwarden.example.tld;

    return 301 https://$host$request_uri;
}

server {
    # 对于旧版本的 nginx，在 ssl 后面的 listen 行中加入 http2，并移除 'http2 on'
    listen 443 ssl;
    listen [::]:443 ssl;
    http2 on;
    server_name vaultwarden.example.tld;

    # 根据需要指定 SSL 配置
    #ssl_certificate /path/to/certificate/letsencrypt/live/vaultwarden.example.tld/fullchain.pem;
    #ssl_certificate_key /path/to/certificate/letsencrypt/live/vaultwarden.example.tld/privkey.pem;
    #ssl_trusted_certificate /path/to/certificate/letsencrypt/live/vaultwarden.example.tld/fullchain.pem;
    #add_header Strict-Transport-Security "max-age=31536000;";

    client_max_body_size 525M;

    location / {
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $connection_upgrade;

    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    # 如果您使用 Cloudflare 代理，请将 $remote_addr 替换为 $http_cf_connecting_ip
    # 参阅 https://developers.cloudflare.com/support/troubleshooting/restoring-visitor-ips/restoring-original-visitor-ips/#nginx-1
    # 或者使用 ngx_http_realip_module
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;

    location / {
      proxy_pass http://vaultwarden-default;
    }

    # 除了 ADMIN_TOKEN 之外，还可以选择添加额外的身份验证
    # 删除下面的 '#' 注释并创建 htpasswd_file 以使其处于活动状态
    #
    #location /admin {
    #  # 参阅：https://docs.nginx.com/nginx/admin-guide/security-controls/configuring-http-basic-authentication/
    #  auth_basic "Private";
    #  auth_basic_user_file /path/to/htpasswd_file;
    #
    #  proxy_http_version 1.1;
    #  proxy_set_header Upgrade $http_upgrade;
    #  proxy_set_header Connection $connection_upgrade;
    #
    #  proxy_set_header Host $host;
    #  proxy_set_header X-Real-IP $remote_addr;
    #  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    #  proxy_set_header X-Forwarded-Proto $scheme;
    #
    #  proxy_pass http://vaultwarden-default;
    #}
}
```

如果遇到 504 Gateway Timeout（网关超时）故障，可以通过在 `server {` 部分添加更长的超时时间来告诉 nginx 等待 Vaultwarden 的时间，例如：

```nginx
  proxy_connect_timeout       777;
  proxy_send_timeout          777;
  proxy_read_timeout          777;
  send_timeout                777;
```

</details>

<details>

<summary>Nginx with sub-path (by <a href="https://github.com/BlackDex">@BlackDex</a>)</summary>

在这个示例中，Vaultwarden 的访问地址为 `https://shared.example.tld/vault/`，如果您想使用任何其他的子路径，比如 `vaultwarden` 或 `secret-vault`，您需要更改下面示例中相应的地方。

为此，您需要配置 `DOMAIN` 变量以使其匹配，它应类似于：

```systemd
; 添加子路径！否则将无法正常工作！
DOMAIN=https://shared.example.tld/vault/
```

```nginx
# 'upstream' 指令确保您有一个 http/1.1 连接
# 这里启用了 keepalive 选项以拥有更好的性能
#
# 此处定义服务器的 IP 和端口
upstream vaultwarden-default {
  zone vaultwarden-default 64k;
  server 127.0.0.1:8000;
  keepalive 2;
}

# 需要这些以支持 websocket 连接
# 参阅：https://nginx.org/en/docs/http/websocket.html
# 我们发送的是空值，而不是上述链接中的 "close"
# 否则所有 keepalive 连接都将失效
map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      "";
}

# 将 HTTP 重定向到 HTTPS
server {
    listen 80;
    listen [::]:80;
    server_name shared.example.tld;

    location /vault/ { # <-- 替换为所需的子路径
        return 301 https://$host$request_uri;
    }

    # 如果您想对整个域名而不是只对 Vaultwarden 强制 HTTPS，
    # 那么您可以使用下面的内容代替上面的 location 块：
    return 301 https://$host$request_uri;
}

server {
    # 对于旧版本的 nginx，在 ssl 后面的 listen 行中加入 http2，并移除 'http2 on;'
    listen 443 ssl;
    listen [::]:443 ssl;
    http2 on;
    server_name shared.example.tld;

    # 根据需要指定 SSL 配置
    #ssl_certificate /path/to/certificate/letsencrypt/live/shared.example.tld/fullchain.pem;
    #ssl_certificate_key /path/to/certificate/letsencrypt/live/shared.example.tld/privkey.pem;
    #ssl_trusted_certificate /path/to/certificate/letsencrypt/live/shared.example.tld/fullchain.pem;
    #add_header Strict-Transport-Security "max-age=31536000;";

    client_max_body_size 525M;

    ## 使用子路径配置
    # 您的安装的 root 目录的路径
    # 请务必添加尾部的 /，否则您可能会遇到问题
    # 但仅限于这个位置，所有其他位置不应添加这些内容
    location /vault/ {
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection $connection_upgrade;

      proxy_set_header Host $host;
      proxy_set_header X-Real-IP $remote_addr;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;

      proxy_pass http://vaultwarden-default;
    }

    # 除了 ADMIN_TOKEN 之外，还可以选择添加额外的身份验证
    # 删除下面的 '#' 注释并创建 htpasswd_file 以使其处于活动状态
    #
    # 不要添加尾部的/，否则您会遇到问题
    #location /vault/admin {
    #  # 参阅：https://docs.nginx.com/nginx/admin-guide/security-controls/configuring-http-basic-authentication/
    #  auth_basic "Private";
    #  auth_basic_user_file /path/to/htpasswd_file;
    #
    #  proxy_http_version 1.1;
    #  proxy_set_header Upgrade $http_upgrade;
    #  proxy_set_header Connection $connection_upgrade;
    #
    #  proxy_set_header Host $host;
    #  proxy_set_header X-Real-IP $remote_addr;
    #  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    #  proxy_set_header X-Forwarded-Proto $scheme;
    #
    #  proxy_pass http://vaultwarden-default;
    #}
}
```

</details>

<details>

<summary><del>Nginx configured by Ansible/DebOps (by ypid)</del></summary>

使用 [DebOps](https://debops.org) 配置 nginx 作为 Vaultwarden 的反向代理的清单示例。我选择在 URL 中使用 PSK 以获得额外的安全性，从而不会将 API 暴露给 Internet 上的每个人，因为客户端应用程序尚不支持客户端证书（我测试过）。 参考[强化指南 - 隐藏在子目录下](/configuration/security/hardening-guide.md#hiding-under-a-subdir)

```nginx
vaultwarden__fqdn: 'vault.example.org'
vaultwarden__http_psk_subpath_enabled: True
vaultwarden__http_psk_subpath: '{{ lookup("password", secret + "/vaultwarden/" +
                                     inventory_hostname + "/config/subpath chars=ascii_letters,digits length=23")
                                   if vaultwarden__http_psk_subpath_enabled | bool
                                   else "" }}'

nginx__upstreams:

  - name: 'vaultwarden-default'
    type: 'default'
    enabled: True
    server: 'localhost:8000'

  - name: 'vaultwarden-ws'
    type: 'default'
    enabled: True
    server: 'localhost:3012'

nginx__servers:

  - name: '{{ vaultwarden__fqdn }}'
    filename: 'debops.vaultwarden'
    by_role: 'debops.vaultwarden'
    favicon: False
    # root: '/usr/share/vaultwarden/web-vault'

    location_list:

      - pattern: '/'
        options: |-
          deny all;

      - pattern: '= /{{ vaultwarden__http_psk_subpath }}'
        options: |-
          return 307 $scheme://$host$request_uri/;

      ## 所有安全 HTTP 标头也需要由 nginx 设置。
      # - pattern: '/{{ vaultwarden__http_psk_subpath }}/'
      #   options: |-
      #     alias /usr/share/vaultwarden/web-vault/;

      - pattern: '/{{ vaultwarden__http_psk_subpath }}/'
        options: |-
          proxy_set_header Host              $host;
          proxy_set_header X-Real-IP         $remote_addr;
          proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
          proxy_set_header X-Forwarded-Proto $scheme;
          proxy_set_header X-Forwarded-Port  443;

          proxy_pass http://vaultwarden-default;

      - pattern: '/{{ vaultwarden__http_psk_subpath }}/notifications/hub/negotiate'
        options: |-
          proxy_set_header Host              $host;
          proxy_set_header X-Real-IP         $remote_addr;
          proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
          proxy_set_header X-Forwarded-Proto $scheme;
          proxy_set_header X-Forwarded-Port  443;

          proxy_pass http://vaultwarden-default;

      - pattern: '/{{ vaultwarden__http_psk_subpath }}/notifications/hub'
        options: |-
          proxy_http_version 1.1;
          proxy_set_header Upgrade $http_upgrade;
          proxy_set_header Connection $connection_upgrade;

          proxy_set_header Host              $host;
          proxy_set_header X-Real-IP         $remote_addr;
          proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
          proxy_set_header X-Forwarded-Proto $scheme;
          proxy_set_header X-Forwarded-Port  443;

          proxy_pass http://vaultwarden-ws;

      # 不要使用图标功能，因为它会显示从我们的凭据到服务器的所有域名
      - pattern: '/{{ vaultwarden__http_psk_subpath }}/icons/'
        options: |-
          access_log off;
          log_not_found off;
          deny all;
```

</details>

<details>

<summary>Nginx (NixOS) (by tklitschi, samdoshi)</summary>

NixOS Nginx 配置示例。关于 NixOS 部署的更多信息，请参阅[部署示例](/alternative-deployments/deployment-examples.md)页面。

```nginx
{ config, ... }:
{
  security.acme = {
    defaults = {
      acceptTerms = true;
      email = "me@example.com";
    };
    certs."vaultwarden.example.tld".group = "vaultwarden";
  };

  services.nginx = {
    enable = true;

    recommendedGzipSettings = true;
    recommendedOptimisation = true;
    recommendedProxySettings = true;
    recommendedTlsSettings = true;

    virtualHosts = {
      "vaultwarden.example.ltd" = {
        enableACME = true;
        forceSSL = true;
        locations."/" = {
          proxyPass = "http://127.0.0.1:8000";
          proxyWebsockets = true;
        };
      };
    };
  };
}
```

</details>

<details>

<summary>Nginx with proxy_protocol in front (by dionysius)</summary>

在这个例子中，有一个下游代理在[这个 nginx 前面的 proxy\_protocol](https://docs.nginx.com/nginx/admin-guide/load-balancer/using-proxy-protocol/) 中进行通信（例如，[启用了 proxy\_protocol 的 LXD 代理设备](https://linuxcontainers.org/lxd/docs/master/reference/devices_proxy/)）。Nginx 需要从这里设置正确使用协议和要转发的标头。标有 `# <---` 的行与 blackdex 的示例内容不同。

参考这个 LXD 下游代理设备配置：

```nginx
devices:
  http:
    connect: tcp:[::1]:80
    listen: tcp:[::]:80
    proxy_protocol: "true"
    type: proxy
  https:
    connect: tcp:[::1]:443
    listen: tcp:[::]:443
    proxy_protocol: "true"
    type: proxy
```

<pre class="language-nginx"><code class="lang-nginx"># proxy_protocol 相关:

set_real_ip_from ::1; # 要信任哪个下游代理，请在前面输入您的代理地址
real_ip_header proxy_protocol; # 可选。如果您希望 nginx 使用来自 proxy_protocol 的信息覆盖 remote_addr。 取决于您在日志模板和服务器或流块中使用的关于远程地址的变量。

# 以下基于 blackdex 的示例:

# 'upstream' 指令确保您有一个 http/1.1 连接
# 这里启用了 keepalive 选项以拥有更好的性能
#
# 这里定义服务器 IP 和端口
upstream vaultwarden-default {
  zone vaultwarden-default 64k;
  server 127.0.0.1:8000;
  keepalive 2;
}
# 需要这些以支持 websocket 连接
# 参阅：https://nginx.org/en/docs/http/websocket.html
# 我们发送的是空值，而不是上述链接中的 "close"
# 否则所有 keepalive 连接都将失效
map $http_upgrade $connection_upgrade {
    default upgrade;
    ''      "";
}

# HTTP 重定向到 HTTPS
server {
    listen 80 proxy_protocol; # &#x3C;---
    listen [::]:80 proxy_protocol; # &#x3C;---
    server_name shared.example.tld;

    return 301 https://$host$request_uri;
}

server {
<strong>    listen 443 ssl proxy_protocol; # &#x3C;---
</strong>    listen [::]:443 ssl proxy_protocol; # &#x3C;---
    http2 on;
    server_name shared.example.tld;

    # 需要时指定 SSL Config
    #ssl_certificate /path/to/certificate/letsencrypt/live/shared.example.tld/fullchain.pem;
    #ssl_certificate_key /path/to/certificate/letsencrypt/live/shared.example.tld/privkey.pem;
    #ssl_trusted_certificate /path/to/certificate/letsencrypt/live/shared.example.tld/fullchain.pem;

    client_max_body_size 525M;

    ## 使用子路径配置
    # 您的安装的 root 目录的路径
    # 请务必添加尾部的 /，否则您可能会遇到问题
    # 但仅限于这个位置，所有其他位置不应添加这些内容
    location /vault/ {
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection $connection_upgrade;

      proxy_set_header Host $host;
      proxy_set_header X-Real-IP $remote_addr;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;

      proxy_pass http://vaultwarden-default;
    }
}
</code></pre>

</details>

<details>

<summary>Apache (by fbartels)</summary>

请记得启用 `mod_proxy_http`，例如使用：`a2enmod proxy_http`。这要求 Apache >= 2.4.47。

如果您通过公共 https 地址访问您的密码库（服务器内部再将请求重定向到 http（例如 80 端口）），则必须启用 `RequestHeader set X-Forwarded-Proto "https"`，否则，密码库虽然可以加载，但您的数据将无法加载。

```apache
<VirtualHost *:443>
    SSLEngine on
    ServerName vaultwarden.example.tld

    SSLCertificateFile ${SSLCERTIFICATE}
    SSLCertificateKeyFile ${SSLKEY}
    SSLCACertificateFile ${SSLCA}
    ${SSLCHAIN}

    ErrorLog ${APACHE_LOG_DIR}/vaultwarden-error.log
    CustomLog ${APACHE_LOG_DIR}/vaultwarden-access.log combined

    ProxyPass / http://127.0.0.1:8000/ upgrade=websocket

    ProxyPreserveHost On
    ProxyRequests Off
    RequestHeader set X-Real-IP %{REMOTE_ADDR}s
    # 如果您的 url 属性报告为 http://... ，请添加此行：
    # RequestHeader add X-Forwarded-Proto https
</VirtualHost>
```

</details>

<details>

<summary>Apache in a sub-location (by <a href="https://github.com/agentdr8">@agentdr8</a> &#x26; <a href="https://github.com/NoseyNick">@NoseyNick</a>)</summary>

修改 docker 启动以包含 sub-location。

```systemd
; 添加子位置！否则将不起作用！
DOMAIN=https://shared.example.tld/vault/
```

请记得启用 `mod_proxy_http`，例如使用：`a2enmod proxy_http`。这要求 Apache >= 2.4.47。

```apache
<VirtualHost *:443>
    SSLEngine on
    ServerName $hostname.$domainname

    SSLCertificateFile ${SSLCERTIFICATE}
    SSLCertificateKeyFile ${SSLKEY}
    SSLCACertificateFile ${SSLCA}
    ${SSLCHAIN}

    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined

    <Location /vault> # 如果需要，调整此处
        ProxyPass http://127.0.0.1:8000/vault/ upgrade=websocket

        ProxyPreserveHost On
        RequestHeader set X-Real-IP %{REMOTE_ADDR}s
    </Location>
</VirtualHost>
```

</details>

<details>

<summary><del>Apache 2.4.47 (or later) in a sub-location (by</del> <a href="https://github.com/NoseyNick"><del>@NoseyNick</del></a><del>)</del></summary>

现在，常规的 `mod_proxy` 支持使用 `upgrade=websocket` 升级到 WebSocket，而不需要 `mod_proxy_wstunnel`。

复制上面的说明，除非使用更简单的...

```apache
<VirtualHost *:443>
  [ blah blah ]
  <Location /vault> #adjust here if necessary
    ProxyPass http://127.0.0.1:8000/vault/ upgrade=websocket
    ProxyPreserveHost On
    ProxyRequests Off # ... is the default, but as a safety-net
    RequestHeader set X-Real-IP %{REMOTE_ADDR}s
  </Location>
</VirtualHost>
```

</details>

<details>

<summary><del>Traefik v1 (docker-compose 示例)</del></summary>

```yaml
labels:
    - traefik.enable=true
    - traefik.docker.network=traefik
    - traefik.web.frontend.rule=Host:vaultwarden.example.tld
    - traefik.web.port=80
```

</details>

<details>

<summary>Traefik v2 (docker-compose 示例 by hwwilliams, gzfrozen)</summary>

#### 将 Traefik v1 标签迁移到 Traefik v2 <a href="#traefik-v-1-labels-migrated-to-traefik-v2" id="traefik-v-1-labels-migrated-to-traefik-v2"></a>

```yaml
labels:
  - traefik.enable=true
  - traefik.docker.network=traefik
  - traefik.http.routers.vaultwarden.rule=Host(`vaultwarden.example.tld`)
  - traefik.http.routers.vaultwarden.service=vaultwarden
  - traefik.http.services.vaultwarden.loadbalancer.server.port=80
```

#### 迁移的标签加上 HTTP 到 HTTPS 重定向 <a href="#migrated-labels-plus-http-to-https-redirect" id="migrated-labels-plus-http-to-https-redirect"></a>

这些标签假定 Traefik 中为端口 80 和 443 定义的入口点分别是「web」和「websecure」。

这些标签还假定您已经在 Traefik 中定义了默认的证书解析器。

```yaml
labels:
  - traefik.enable=true
  - traefik.docker.network=traefik
  - traefik.http.middlewares.redirect-https.redirectScheme.scheme=https
  - traefik.http.middlewares.redirect-https.redirectScheme.permanent=true
  - traefik.http.routers.vaultwarden-https.rule=Host(`vaultwarden.domain.tld`)
  - traefik.http.routers.vaultwarden-https.entrypoints=websecure
  - traefik.http.routers.vaultwarden-https.tls=true
  - traefik.http.routers.vaultwarden-https.service=vaultwarden
  - traefik.http.routers.vaultwarden-http.rule=Host(`vaultwarden.domain.tld`)
  - traefik.http.routers.vaultwarden-http.entrypoints=web
  - traefik.http.routers.vaultwarden-http.middlewares=redirect-https
  - traefik.http.routers.vaultwarden-http.service=vaultwarden
  - traefik.http.services.vaultwarden.loadbalancer.server.port=80
```

</details>

<details>

<summary>HAproxy (by <a href="https://github.com/BlackDex">@BlackDex</a>)</summary>

将这些行添加到您的 HAproxy 配置中。

```nginx
frontend vaultwarden
    bind 0.0.0.0:80
    option forwardfor header X-Real-IP
    http-request set-header X-Real-IP %[src]
    default_backend vaultwarden_http

backend vaultwarden_http
    # 启用压缩（如果您需要）
    # 压缩算法 gzip
    # 压缩类型 text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript
    # Vaultwarden 不支持 forwarded 头，但您可以启用它
    # option forward
    # 添加 x-forwarded-for 头
    option forwardfor
    # 在 `X-Real-IP` 头中设置来源 IP
    http-request set-header X-Real-IP %[src]
    # 将流量发送到本地实例
    server vwhttp 0.0.0.0:8000alpn http/1.1
```

</details>

<details>

<summary><del>HAproxy - before v1.29.0 (by</del> <a href="https://github.com/williamdes"><del>@williamdes</del></a><del>)</del></summary>

将这些行添加到您的 HAproxy 配置中。

```apache
backend static-success-default
  mode http
  errorfile 503 /usr/local/etc/haproxy/static/index.static.default.html
  errorfile 200 /usr/local/etc/haproxy/static/index.static.default.html

frontend http-in
    bind *:443 ssl crt /acme.sh/domain.tld/domain.tld.pem alpn h2,http/1.1
    option forwardfor header X-Real-IP
    http-request set-header X-Real-IP %[src]
    default_backend static-success-default

    # 定义主机
    acl host_vaultwarden_domain_tld hdr(Host) -i vaultwarden.domain.tld

    ## 谋划要使用哪一个
    use_backend vaultwarden_http if host_bitwarden_domain_tld

backend vaultwarden_http
    # 启用压缩（如果您需要）
    # 压缩算法 gzip
    # 压缩类型 text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript
    # 如果您在 docker-compose 中使用 haproxy，则可以使用容器主机名
    server vw_http 0.0.0.0:8080 alpn http/1.1
```

</details>

<details>

<summary><del>HAproxy inside PfSense (by</del> <a href="https://github.com/RichardMawdsley"><del>@RichardMawdsley</del></a><del>)</del></summary>

作为 GUI 设置，下面的详细信息\说明供您在需要的地方添加。

* 假设您已经设置好了基本的 HTTP > HTTPS 重定向设置。[基本设置](https://blog.devita.co/pfsense-to-proxy-traffic-for-websites-using-pfsense/)

### 后端创建

后端 1：

```
Mode	  Name	                     Forwardto	    Address	      Port	 Encrypt(SSL)	 SSL checks	  Weight	 Actions
active 	Vaultwarden                Address+Port:  IPADDRESSHERE 80     no            no
```

后端 2：

```
Mode	  Name	                     Forwardto	    Address	      Port	 Encrypt(SSL)	 SSL checks 	Weight	Actions
active 	Vaultwarden-Notifications  Address+Port:  IPADDRESSHERE 3012   no            no
```

### 前端创建-1-域名 <a href="#frontend-creation-1-domain" id="frontend-creation-1-domain"></a>

**ACCESS CONTROL LIST**

```yaml
ACL00
Host matches:
no
no
FQDN.com     -  注意：这需要是您的根域名。

ACL00
Path starts with:
no
yes
/big-ass-randomized-test-that-really-no-one-is-ever-going-to-type-DONT-USE-THIS-LINE-THOUGH-make-your-own-up

ACL01
Host matches:
no
no
VAULTWARDEN.MYDOMAIN.COM

ACL01
Host matches:
no
no
EXAMPLE-OTHER-SUB-DOMAIN-1.MYDOMAIN.COM

ACL01
Host matches:
no
no
EXAMPLE-OTHER-SUB-DOMAIN-2.MYDOMAIN.COM
```

**ACTIONS-1-Domain**

```yaml
http-request allow
See below
ACL01

http-request deny
See below
ACL00
```

### 前端创建-2-VaultWarden <a href="#frontend-creation-2-vaultwarden" id="frontend-creation-2-vaultwarden"></a>

**ACCESS CONTROL LIST**

```yaml
ACL1
Path starts with:
no
yes
/notifications/hub

ACL2
Path starts with:
no
no
/notifications/hub/negotiate

ACL3
Path starts with:
no
no
/notifications/hub

ACL4
Path starts with:
no
yes
/notifications/hub/negotiate

ACL5
Path starts with:
no
no
/admin
```

**ACTIONS - 2 - VaultWarden**

```yaml
Use Backend
See below
ACL1
backend: VaultWarden

Use Backend
See below
ACL2
backend: VaultWarden

Use Backend
See below
ACL3
backend: VaultWarden-Notifications

Use Backend
See below
ACL4
backend: VaultWarden-Notifications

http-request deny
See below
ACL5
```

#### **更新记录** <a href="#updates" id="updates"></a>

```
Updated above 30/07 - 我在第一次配置后意识到，因为 ACL1-4 有 'Not'，他们正在将任何内容与他们的动作相匹配。所以 BlahBlahMcGee.FQDN.com 通过了。这不是故意的，所以上面添加了 ACL5 来解决这个问题，它还移除了对默认后端的需要。
Updated again 30/07 - ^ 是的，没用。这一切都源于 HaProxy 不允许在 ACL 中使用 'AND'。唉。现在有了上面的内容，您可以为根域配置一个前端。这有一个否认本身，以及任何未指定的内容。因此，如果您要通过多个其他子域，则需要将它们全部添加到 ACL01 下。现在一切正常了！
```

#### 重要提示 <a href="#important-notes" id="important-notes"></a>

```
1) 您必须使域名前端与允许列表中的任何其他子域名保持同步
2) 在域名前端，ACL01 必须位于 Actions 表的顶部 - 或至少在 ACL00 的上面
3) ACL 名称的重复使用是故意的。是的，我没有打错它们。ACL00、ACL01 等等
```

#### 可选 <a href="#optional" id="optional"></a>

```
上面的 ACL5 拒绝访问 /admin 门户。我不是特别喜欢没有任何形式的 2FA 且只有密码的管理门户。因此，当我不使用它时，我只是拒绝访问。如果我需要它，请取消阻止，完成所需的工作并重新阻止。
```

完成！可以去做测试了！

反过来，可以将下面的等效项添加到您的配置中（请注意，这是一个示例摘要）。

```yaml
acl			ACL00	var(txn.txnhost) -m str -i VAULTWARDEN.MYDOMAIN.COM
acl			ACL00	var(txn.txnpath) -m beg -i /big-ass-randomised-test-that-really-no-one-is-ever-going-to-type-DONT-USE-THIS-LINE-THOUGH-make-your-own-up
acl			ACL01	var(txn.txnhost) -m str -i EXAMPLE-OTHER-SUB-DOMAIN-1.MYDOMAIN.COM
acl			ACL01	var(txn.txnhost) -m str -i EXAMPLE-OTHER-SUB-DOMAIN-2.MYDOMAIN.COM
acl			ACL1	var(txn.txnpath) -m beg -i /notifications/hub
acl			ACL2	var(txn.txnpath) -m beg -i /notifications/hub/negotiate
acl			ACL3	var(txn.txnpath) -m beg -i /notifications/hub
acl			ACL4	var(txn.txnpath) -m beg -i /notifications/hub/negotiate
acl			ACL5	var(txn.txnpath) -m beg -i /admin

http-request allow  if  ACL01
http-request deny   if  !ACL00
http-request deny   if  !ACL5
http-request deny   if  ACL5
use_backend VaultWarden_ipvANY  if  !ACL1
use_backend VaultWarden_ipvANY  if  ACL2
use_backend VaultWarden-Notifications_ipvANY  if  ACL3
use_backend VaultWarden-Notifications_ipvANY  if  !ACL4
```

为了进行测试，如果您在浏览器中导航到 /notifications/hub，那么您应该会看到一个页面，上面写着「WebSocket Protocol Error: Unable to parse WebSocket key.」（WebSocket 协议错误：无法解析 WebSocket 密钥）……这意味着它可以正常工作！ - 所有其他子页面都应该出现 Rocket 错误。

</details>

<details>

<summary>HAproxy Kubernetes Ingress(by <a href="https://github.com/devinslick">@devinslick</a>)</summary>

控制器安装详情可在此处找到：<https://www.haproxy.com/documentation/kubernetes-ingress/community/installation/on-prem/>。请注意，仅当您使用 Cloudflare 时才需要 CF-Connecting-IP 标头

添加以下资源定义：

```yml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: vaultwarden
  namespace: default
  annotations:
    haproxy.org/forwarded-for: "true"
    haproxy.org/compression-algo: "gzip"
    haproxy.org/compression-type: "text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript"
    haproxy.org/http2-enabled: "true"
spec:
  ingressClassName: haproxy
  tls:
  - hosts:
    - vaultwarden.example.tld
  rules:
  - host: vaultwarden.example.tld
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: vaultwarden-http
            port:
              number: 80
```

</details>

<details>

<summary>Istio k8s (by <a href="https://github.com/asenyaev">@asenyaev</a>)</summary>

```yml
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: vaultwarden-gateway
  namespace: vaultwarden
spec:
  selector:
    istio: ingressgateway-internal # 使用 Istio 默认网关实现
  servers:
  - hosts:
    - vw.k8s.prod
    port:
      number: 80
      name: http
      protocol: HTTP
    tls:
      httpsRedirect: true
  - hosts:
    - vw.k8s.prod
    port:
      name: https-443
      number: 443
      protocol: HTTPS
    tls:
      mode: SIMPLE
      credentialName: vw-k8s-prod-tls
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: vaultwarden-vs
  namespace: vaultwarden
spec:
  hosts:
  - vw.k8s.prod
  gateways:
  - vaultwarden-gateway
  http:
  - match:
    - uri:
        prefix: /
    route:
    - destination:
        port:
          number: 80
        host: vaultwarden
```

</details>

<details>

<summary><del>Istio k8s - before v1.29.0 (by</del> <a href="https://github.com/dpoke"><del>@dpoke</del></a><del>)</del></summary>

```yml
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
  name: vaultwarden-gateway
  namespace: vaultwarden
spec:
  selector:
    istio: ingressgateway-internal # 使用 Istio 默认网关实现
  servers:
  - hosts:
    - vw.k8s.prod
    port:
      number: 80
      name: http
      protocol: HTTP
    tls:
      httpsRedirect: true
  - hosts:
    - vw.k8s.prod
    port:
      name: https-443
      number: 443
      protocol: HTTPS
    tls:
      mode: SIMPLE
      credentialName: vw-k8s-prod-tls
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  name: vaultwarden-vs
  namespace: vaultwarden
spec:
  hosts:
  - vw.k8s.prod
  gateways:
  - vaultwarden-gateway
  http:
  - match:
    - uri:
        exact: /notifications/hub
    route:
    - destination:
        port:
          number: 3012
        host: vaultwarden-ws
  - match:
    - uri:
        prefix: /
    route:
    - destination:
        port:
          number: 80
        host: vaultwarden
```

</details>

<details>

<summary><del>relayd on openbsd (by olliestrickland)</del></summary>

经测试可正常运行（包括 websockets） - /etc/relayd.conf - 在 openbsd 7.2 上使用来自 OpenBSD Ports 的 Vaultwarden - <https://openports.se/security/vaultwarden>

此配置取决于 tls 的正确设置 - 我使用 <https://man.openbsd.org/acme-client>

```nginx
table <vaultwarden-default-host> { localhost }
table <vaultwarden-websocket-host> { localhost }

# 带有 tls 的 Vaultwarden 协议定义

http protocol vaultwarden-https {
        # 添加 Vaultwarden 所需要的标头
        match request header append "X-Real-IP" value "$REMOTE_ADDR"

        # 添加一些 Vaultwarden 可能不需要的标头
        match request header append "Host" value "$HOST"
        match request header append "X-Forwarded-For" value "$REMOTE_ADDR"
        match request header append "X-Forwarded-By" value "$SERVER_ADDR:$SERVER_PORT"

        # 最普通的规则 - 转发到 Vaultwarden Rocket
        match request path "/*" forward to <vaultwarden-default-host>

        # 将用于 websocket 的路径转发到 Vaultwarden websocket 端口
        match request path "/notifications/hub" forward to <vaultwarden-websocket-host>

        # 将最具体的路径保存在最后 - 此路径不应转发到 websocket 服务器
        match request path "/notifications/hub/negotiate" forward to <vaultwarden-default-host>

        # 各种 TCP 选项
        tcp { nodelay, sack, backlog 128 }

        # tls 配置
        tls keypair bitwarden.example.tld
        tls { no tlsv1.0, ciphers HIGH }

        # 允许 websockets - 这很好，它可以处理连接升级，而无需手动编辑标头
        http websockets
}

# Vaultwarden 的中继定义 - 将出口接口上的入站 443 tls 转发到默认 8000 端口上的 rocket 和 3012 上的 websocket

relay vaultwarden-https-relay {
        listen on egress port 443 tls
        protocol vaultwarden-https
        forward to <vaultwarden-default-host> port 8000
        forward to <vaultwarden-websocket-host> port 3012
}
```

</details>

<details>

<summary><del>CloudFlare - before v1.29.0 (by</del> <a href="https://github.com/williamdes"><del>@williamdes</del></a><del>)</del></summary>

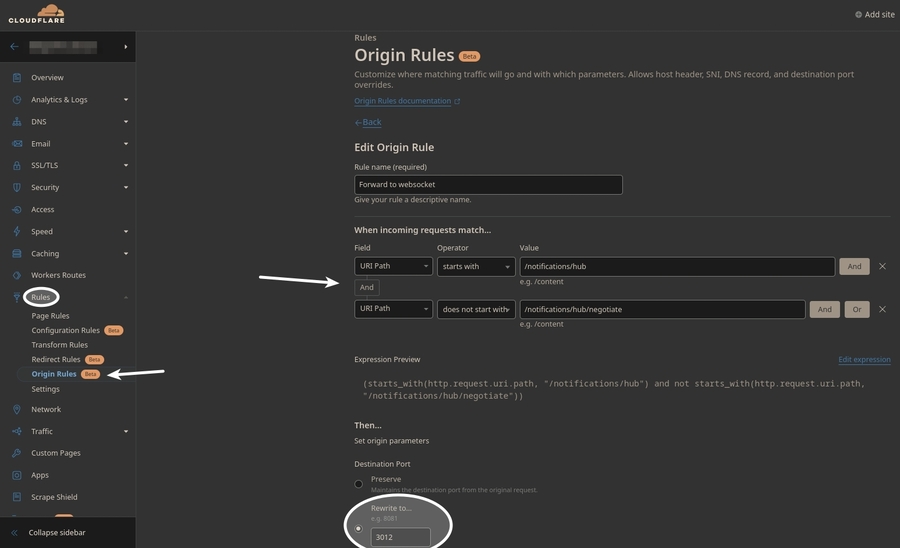

按照下面的截图创建新的规则。用于查找此设置的示例仪表板 URL：`https://dash.cloudflare.com/xxxxxx/example.org/rules/origin-rules/new`

<img src="https://user-images.githubusercontent.com/7784660/251004005-e27d9152-219b-4b6a-bf96-dcfce30ebd73.png" alt="" data-size="original">

</details>

<details>

<summary>CloudFlare Tunnel (by <a href="https://github.com/calvin-li-developer">@calvin-li-developer</a>)</summary>

`docker-compose.yml`：

```yaml
version: '3'

services:
  vaultwarden:
    container_name: vaultwarden
    image: vaultwarden/server:latest
    restart: unless-stopped
    environment:
      DOMAIN: "https://vaultwarden.example.ltd"  # 您的域名；vaultwarden 需要知道您的域名是 https，才能正常处理附件
    volumes:
      - ./vw-data:/data
    networks:
      - vaultwarden-network

  cloudflared:
    image: cloudflare/cloudflared:2024.1.2
    container_name: vaultwarden-cloudflared
    restart: unless-stopped
    read_only: true
    volumes:
      - ./cloudflared-config:/root/.cloudflared/
    command: [ "tunnel", "run", "${TUNNEL_ID}" ]
    user: root
    depends_on:
      - vaultwarden
    networks:
      - vaultwarden-network
networks:
  vaultwarden-network:
    name: vaultwarden-network
    external: false
```

`cloudflared-config` 文件夹中的内容：

```
config.yml  aaaaa-bbbb-cccc-dddd-eeeeeeeee.json
```

请使用[本指南](https://thedxt.ca/2022/10/cloudflare-tunnel-with-docker/)找出您的 cloudflare 账户的以下内容/值。注意：`aaaaa-bbbb-cccc-dddd-eeeeeeeee` 只是一个随机的 tunnelID，请使用真实的 ID。

`config.yml`：

```yaml
tunnel: aaaaa-bbbb-cccc-dddd-eeeeeeeee
credentials-file: /root/.cloudflared/aaaaa-bbbb-cccc-dddd-eeeeeeeee.json

originRequest:
  noHappyEyeballs: true
  disableChunkedEncoding: true
  noTLSVerify: true

ingress:
  - hostname: vault.example.com # 更改为您自己的域名
    service: http_status:404
    path: admin
  - hostname: vault.example.com # 更改为您自己的域名
    service: http://vaultwarden
  - service: http_status:404
```

`aaaaa-bbbb-cccc-dddd-eeeeeeeee.json`：

```
{"AccountTag":"changeme","TunnelSecret":"changeme","TunnelID":"aaaaa-bbbb-cccc-dddd-eeeeeeeee"}
```

</details>

<details>

<summary>Pound</summary>

```apache
Alive		15

ListenHTTP
	Address 127.0.0.1
	Port    80
	xHTTP 3
	HeadRemove "X-Forwarded-For"
	Service
		Host "vaultwarden.example.tld"
		Redirect 301 "https://vaultwarden.example.tld"
	End
End

ListenHTTPS
	Address 127.0.0.1
	Port    443
	Cert    "/path/to/certificate/letsencrypt/live/vaultwarden.example.tld/fullchain.pem"
	xHTTP 3
	AddHeader "Front-End-Https: on"
	RewriteLocation 0
	HeadRemove "X-Forwarded-Proto"
	AddHeader "X-Forwarded-Proto: https"
End

Service
	Host "vaultwarden.example.tld"
	BackEnd
		Address 127.0.0.1
		Port    8000
	End
End
```

</details>


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://rs.ppgg.in/reverse-proxy/proxy-examples.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
